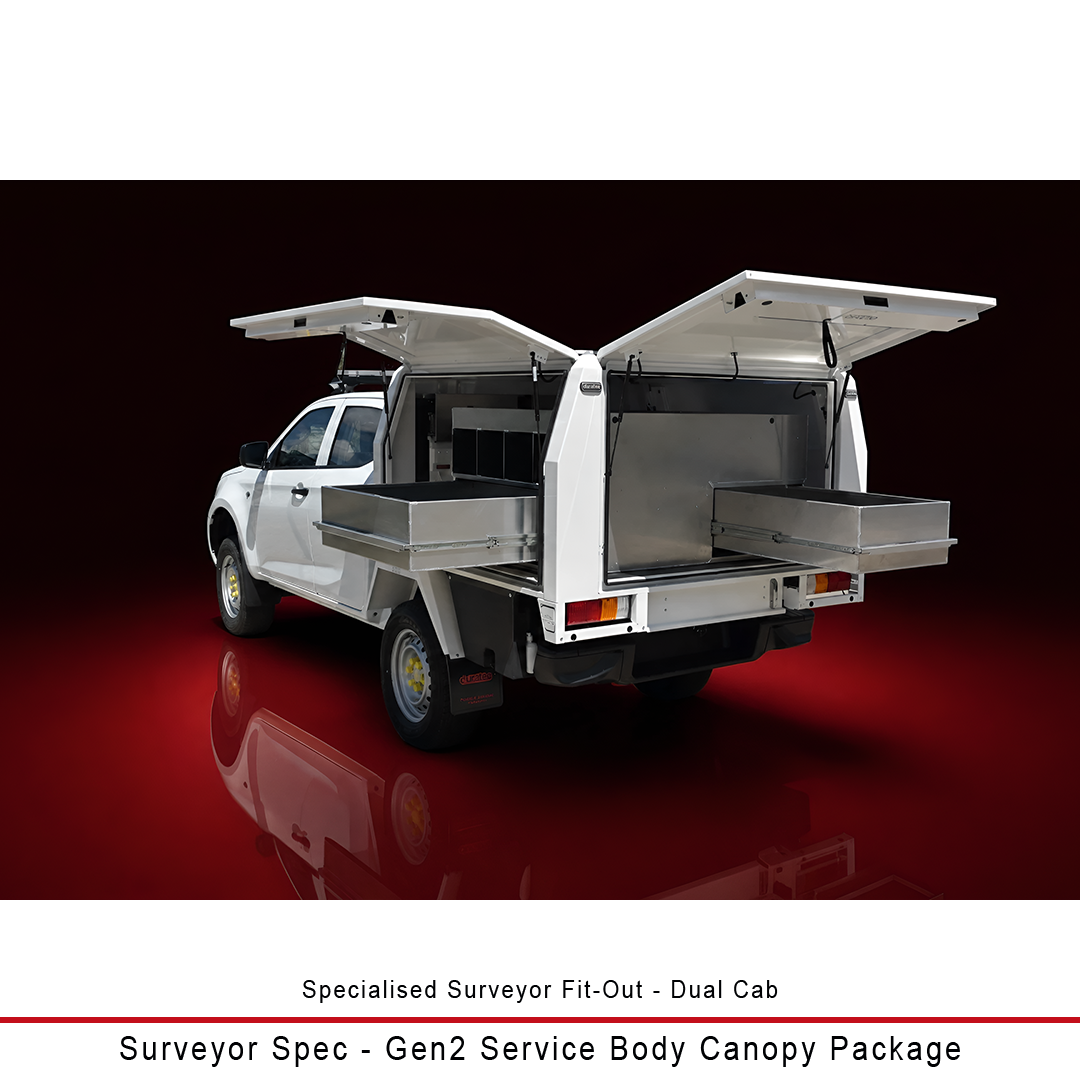

Surveyor Spec – Gen2 Service Body Canopy Package - Dual Cab

Purpose-built for professional surveying applications, the Duratray Surveyor Spec provides a versatile aluminium service body canopy platform designed around the storage, organisation and accessibility requirements of field-based surveyors.

Based on our Gen2 alloy canopy and fitted with purpose-designed storage compartments, the Surveyor Spec package creates a practical mobile equipment platform for surveying, construction and site-based applications.

The configuration provides dedicated storage for surveying equipment, tripods, tools and other essential field equipment, while maintaining easy access through the canopy's multiple storage compartments and drawer systems.

Designed as a base platform, the Surveyor Spec can be further configured with additional equipment and accessories to suit individual fleet requirements.

Key Features

• Gen2 Alloy Canopy – 1800L × 1850W ×1000H
• 1500L Rolla-drawer with incremental locking & slide out work bench
• 2 x Underbody Toolboxes
• 1000W × 800L drawer
• 500W × 1000L drawer

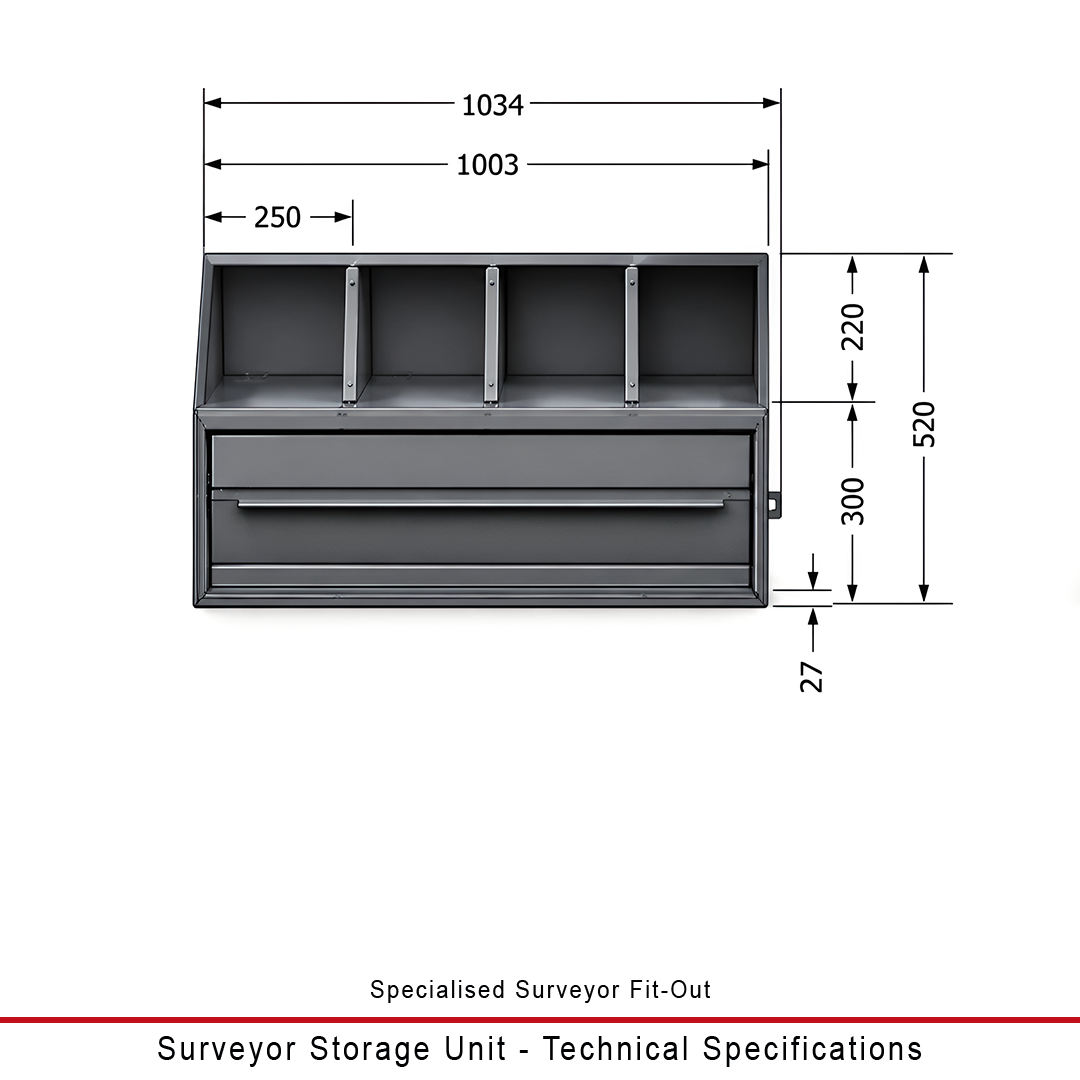

• Dedicated tripod compartment – 250W × 220H × 1300L

• Dedicated equipment and tool storage
• Gullwing side-access doors
• Practical internal storage layout


Optional / Additional Equipment

The Surveyor Spec can also be configured with additional accessories, including:

• Roof rack
• LED beacon(s)
• Auxiliary Battery System
• Internal Hanging Shelf
• 1200W × 600L × 220H
• Fire Extinguisher

From dedicated tripod storage and long-item compartments to large drawers and accessible canopy storage, the layout is designed to keep equipment organised, protected and readily accessible while working on site.
